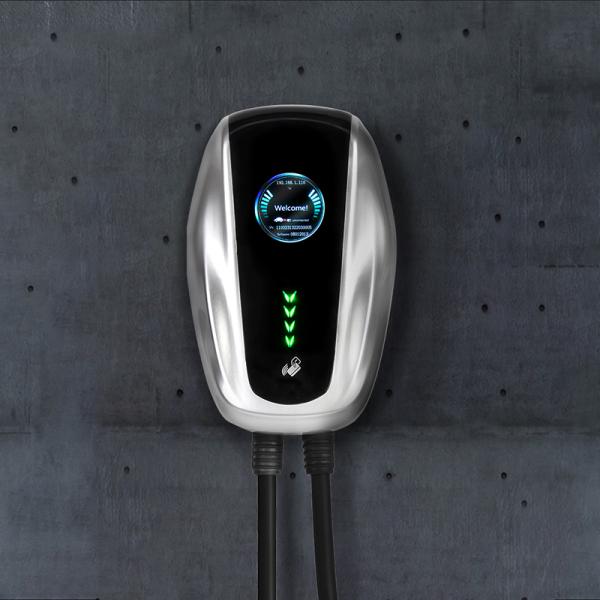

4.3'' Color Screen 32A Type 2 Wall Mounted EV Charger 7KW

Name: 43 Color Screen 32A Type 2 Wall Mounted EV Charger 7KW
Brand: HEIU
Price: 1 USD

Wholesale 4.3'' Color Screen 32A Type 2 Wall Mounted EV Charger 7KW from china suppliers

Brand Name : HEIU

Model Number : Heiu-7000S

Certification : TUV,CE,RoHS

Place of Origin : China

MOQ : 1 PC

Price : negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 3000pcs/Month

Delivery Time : 20-25 days

Packaging Details : each set in inner carton, then in master carton box

LED indicator : blue / red / green

Protection rank : IP54

LCD display : 4.3'' color screen

Input power : 250V max

Operating temperature : -30℃ to 50℃

Contact Now

Home Charger 32A Type 2 Ev Charger Station 7KW Wall Mounted EV Charger

Product Description:

The WALLBOX charging station - three-phase - Type 2 5m attached cable is powered in three-phase. Its charging intensity is adjustable instantly and at any time between 6A and 32A, via the Wallbox application. The terminal can therefore be configured to adapt to the available power of your home. Its attached T2 cable will ensure secure charging of your electric car in mode 3.

Product Specification:

Certificates & QC	CE, UKCA, ROHS,ISO
Protection rank	IP54 Cable; IP54 Station
LCD display	4.3’’ color screen (opt)
RCD	type B (30mA AC + 6mA DC)
Power cord	open ready to wire into electricity
Charging cable	5M Type 2 (TPU Jacket)
LED indicator	R/G/B
Emergency stop	Yes
Start mode	RFID card swipe / APP optional
Station size	290x180x95 (mm)
Warranty	2 years (both cable and station)
lead time	20-25 days after deposit payment
Payment Terms	T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)
Electrical Protection	Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied	Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. UV coating Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo	Logo put on shell by laser on station box or cable head
Package	Each in inner carton box with blister inner tray, then 2 inner cartons into 1 master carton
Features	Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019 IP54, Weather proof; Leakage current protection; Impact resistance Charging status and working error simply displayed by LED indicators and LCD screen

4.3'' Color Screen 32A Type 2 Wall Mounted EV Charger 7KW

Packing & Delivery:

4.3'' Color Screen 32A Type 2 Wall Mounted EV Charger 7KW
